ArmoníaPlus System Design

With ArmoníaPlus System Design system integrators now have the tools to easily manage even the most intricate Install Project, through a dedicated Install Skin. This new version brings more than what you’d expect from a software update. It redefines what our amps can do, delivering a plethora of new features and streamlining the ones that have been available up to now.

Live Sound projects maintain the same structure from the original iteration of ArmoníaPlus, while Install System projects reflect the needs of system integrators for sources and zones management, and allow the creation of fully customizable user interfaces and controls in the new ‘Views Designer’.

ArmoníaPlus System Design

ArmoníaPlus introduces Source Objects. These feature individual EQ and gain and are used to define an audio source that can be dynamically patched to amplifiers and zones. Sources can be fed to the amplifier’s analog, Dante, or AES3 inputs; and can be configured as mono, stereo, and multichannel (up to 64 channels).

logo-a

ArmoníaPlus System Design.

One tool, two souls, endless possibilities.

INSTALL SKIN

SET UP OF DYNAMIC MUSIC DISTRIBUTION

The Install Skin enables streamlined configuration of sources and control surfaces through a dedicated skin that allows complete control over Dynamic Music Distribution systems.

Control analog and digital music sources with native routing capabilities and configure multiple types of controllers for source, zone, and level management.

TOURING SKIN

CONTROL OF MONITORING OF TOURING SYSYEMS

The Live Skin features an intuitive workflow that simplifies the setup and deployment of touring sound systems.

Users can choose from over 1000 free speaker presets from top pro-audio brands, or create, manage, and share their own.

Configure and route analog, Dante, and AES3 sources and keep everything in check from a single software.

CONTROLLERS

ArmoníaPlus System Design
WM TOUCH
ArmoníaPlus System Design
WM PANEL
SYSCONTROL APP
WEBVIEWS
WEBVIEWS
XSeriesRecallApp
X SERIES RECALL

A series of control interfaces and apps are available on the Install and the Live Skins. These can be configured to control sources, levels, scenes, and zones; or to quickly recall presets that have been stored within the amplifiers.

While WMP and WM Touch are limited for use within DMD and installed applications, the user can create custom control interfaces that are available for access through a web browser for any system.

WM TOUCH

The WM Touch is a PoE-fed wall-mounted touch screen that allows control of Dynamic Music Distribution systems from a single 4.3’’ touch panel through custom or pre-loaded layouts.

WM PANEL

The WMP line consists of a series of devices that are used to control key system functionalities, such as level control, source selection, and scene selection.

SYS CONTROL APP

The Sys Control App allows remote control from any smartphone or tablet and can be used to load A+ projects designs to any Powersoft amplifier and controller.

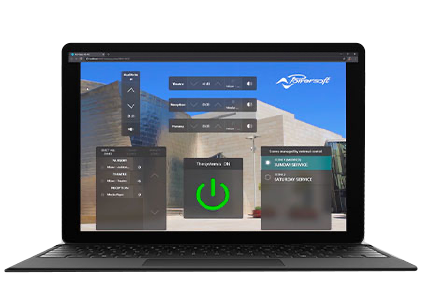

WEBVIEWS

Designing custom web interfaces through ArmoníaPlus’ Views Designer is the simplest way to control and monitor multiple sources and zones from any web browser, including those on mobile devices.

X SERIES PRESET RECALL

The Snapshot Selector App, available on Android and IOS devices, represents the easiest and most convenient way to recall any snapshot stored within an X Series amplifier.

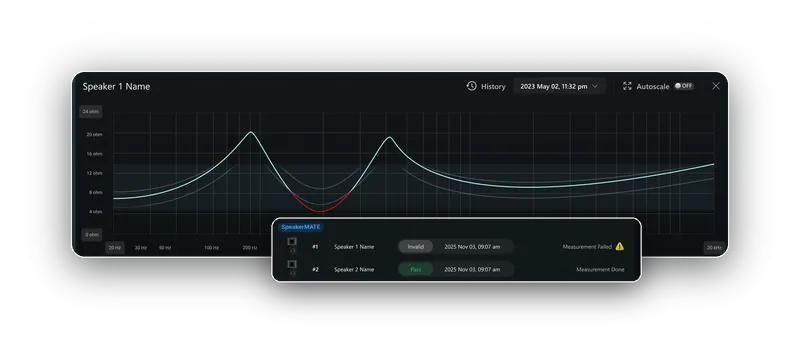

MONITORING & HEALTH PLUS

HealthPlus brings a streamlined monitoring environment with all the critical elements of a sound system neatly displayed on a single window.
With its updated display, HealthPlus gives sound engineers a complete suite of diagnostic control to more effectively monitor the health of the system in real-time, both in touring and in installed sound applications.
In addition to input monitoring for power amplifiers, speakers, and other connected devices, the system is also capable of measuring system health indicators such as headroom, temperature, voltage, and impedance to ensure optimal performance of all elements and will automatically alert users in case of malfunctions or element failures.

Your projects are in the Cloud

Seamlessly integrate your projects into MyUniverso, enabling efficient monitoring from anywhere in the world.

DOWNLOADS

ArmoníaPlus 2.7.1ArmoníaPlus 2.7.1 offline setup

Minimum PC system requirements:

  • CPU: Intel I3 or equivalent
  • RAM: 4 GB RAM
  • Video adapter: 128 MB dedicated RAM
  • HD: 2.5 GB available space
  • OS supported: Microsoft Windows 7 64bit  – Windows 8.1 64 bit  – Windows 10 64bit
  • Required software: Microsoft .Net 5
  • Monitor resolution: 1280×720, 24-bit color
  • For Ethernet connection: Ethernet card (>=100 Mbit/s), or equivalent wireless equipment (>=54 Mbit/s) (optional)
  • For serial connection: RS485 port, or USB-to-RS485 adapter (optional)
  • For notifications per SMS: GSM modem (optional)
  • For notifications per email: Internet connection (optional)
  • Compatibility does not include Windows for ARM processors

Find the details on this release notes here.

Firmware update procedure is automatic through ArmoníaPlus, for updating firmware manually please refer to the links below

Firmware Download
Armonía Pro Audio Suite 2.11.4.19306

For the details of the speaker preset library available in this release click here.

TUTORIALS

ARMONÍAPLUS

The latest update ArmoníaPlus redefines what Powersoft amplifiers are capable of, delivering a plethora of new features for sources and zones management and allowing the creation of fully customisable user interfaces and controls in the new Views Designer.
