LiteMod

2 Channel High Efficiency Amplifier Module

Powersoft_ICONS_features-black_PFC Powersoft_ICONS_features-black_SRM Powersoft_ICONS_features-black_DSP-optional GreenPower@2x

Overview

LiteMod is a compact and powerful switching mode amplifier module delivering up to 800W + 400W or 2x 600W in 2 channels mode or 1200W in bridge mode.

LiteMod is a flexible platform designed to fit into active monitors, two ways loudspeakers and small/medium size subwoofers.

The design of the power supply equipped with PFC, reduces power consumption (less than 0.55 W in standby) while enhancing reliability and consistency in all operating conditions.

The high efficiency of the output stage improves overall performance delivering pristine power and a clean output signal.

Compatible with the majority of DSP solutions available from Powersoft, the LiteMod performances can be easily tailored and controlled through Powersoft's ArmoníaPlus, making all kind of processing tools easily available.

MyPowersoft services are available for this product

Features

Efficiency and robustness, always and everywhere

  • Powersoft switching mode technology grants reliability, robustness and attention to detail. Accurate design of the Pulse Width Modulation block offers maximum performance, high predictability and immunity from intermodulation artifacts.

Maximize performances, minimize consumption

  • automatic mains voltage selector for world wide operation;
  • latest generation single-stage patented Power Factor Correction;
  • 0.5 W low standby power consumption
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals

Complete set of protections

  • thermal shutdown;
  • 24 bit @ 48 kHz, 120 dB S/N AD/DA converters
  • short circuit and overload protection;
  • stationary high frequency protection.

Compactness

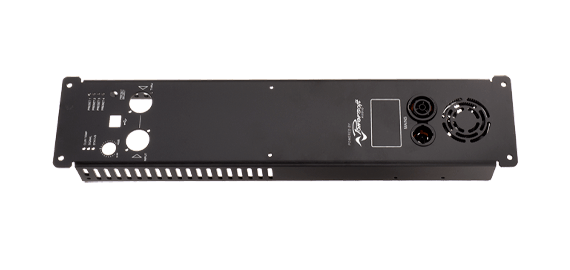

  • power supply, output stage and connectors are all included in a single, compact, lightweight chassis.

Specifications

General
Output power
Single-Ended Mode (SE)600 W @ 4 Ω400 W @ 4 Ω
Bridge Mode (BTL)1200 W @ 8 Ω
Max output voltage / current
Max output voltage43 Vpeak / 31 Apeak
Max output current85 Vpeak / 31 Apeak
AC main power
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Rated Power Supply Voltage100-240 V ±10%, 50-60 Hz
Operating voltage90 V – 264 V
Power consumption
Standby0.5 W
Idle13.5 W
1/8 of max output power @ 8 Ω220 W
THERMAL
Operating temperature range0° – 45° C – 32° – 113° F
