Fitness and Leisure centers

Challenge

A sound system for leisure centers often shares his duties with a PA system and an entertainment one, in this, it needs to provide adequate SPL to be heard over any background noise. In these applications, a well defined acoustic signature is a must-have, and the system must feature high levels of flexibility in source routing and ample power.

Solution

Powersoft’s install dedicated amplifier platforms are renowned for their power density, while the low thermal dissipation and high-efficiency values help to keep running costs at an all-time low. Tuning the system is extremely easy thanks to the advanced sound-shaping tools that are provided with any Powersoft’s DSP enabled amplifier platform, while advanced networking options allow for control and monitoring of the system from virtually anywhere.

Application Examples

Mezzo Series

System Overview:

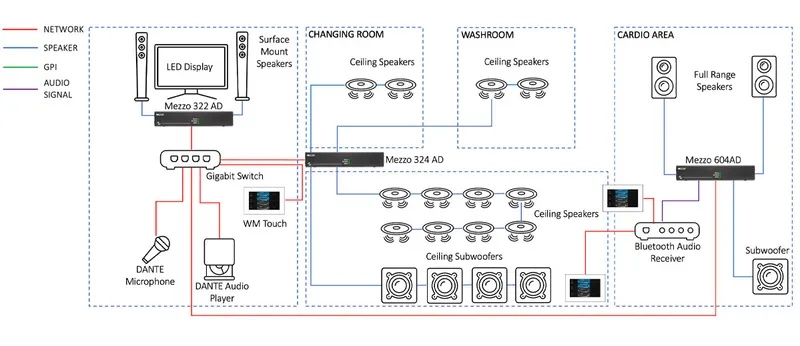

In this Gym application, the system is divided into four zones with various music sources. With the ability of the Mezzo physical inputs to act as a break inbox, the analog input is converted to Dante and fed to all the other amplifiers. Analog wall controllers provide local volume control and source selection for each zone.

Key Features:

  • Full power-sharing allows for flexible use of sub-woofer, full-range, and high impendence loudspeakers
  • Using the capability of the Mezzo to act as a break inbox, the analog source is converted to DANTE
  • Analog volume control enables the user to control the zone’s local output to match the ambiance.
  • The compact size of Mezzo enables it to be mounted behind the LCD screens and used in a space constraint area like a reception desk.

System Overview:

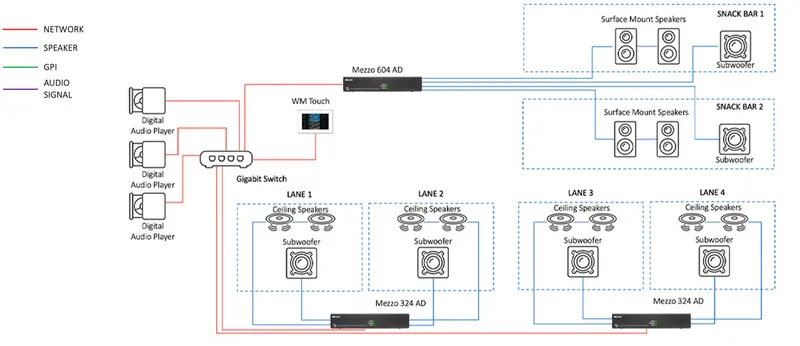

In this bowling alley application, the system is divided into one zone per bowling lane and two bar areas allowing for induvial music sources selection. With the ability of the Mezzo physical inputs to act as a break inbox, the analog input is converted to Dante and fed to all the other amplifiers. Analog wall controllers provide local volume control and source selection for each zone.

Key Features:

  • Full power-sharing allows for flexible use of sub-woofer, full-range, and high impendence loudspeakers
  • Straight forward and cost-efficient source selection using GPI.
  • Flexible input selection available for best quest experience
  • Equipment can easily be placed in bar elements without the need for a dedicated rack.
