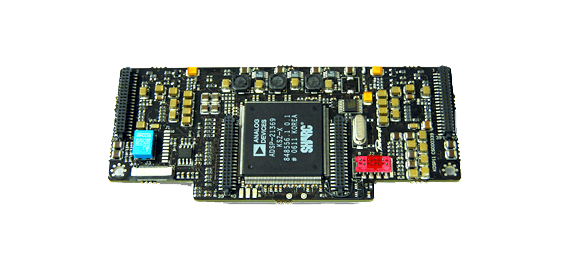

KDSP BOARD

All K Series amplifiers can be factory-equipped with KDSP, or be retrofitted later.

The KDSP board provides access to unique ArmoníaPlus functionalities such as LiveImpedance™ Measurement, TruePower™ Limiter, and Active DampingControl™.
Programming/editing can be achieved both via the amplifier front panel and via Ethernet with the ArmoníaPlus software.

Processing power and audio performances

Based on Analog Devices SHARC® DSP with 40 bit floating point data allowing for optimal dynamic range and lossless processing, the KDSP board offers:

2x analog input with:

  • Tandem® technology for optimized A/D conversion (>125dB SNR)
  • Up to 4s of input delay
  • Arbitrary frequency response input equalizer with three layers of 32 filters each (PEQ, Raised cosine, Shelving)

Complete set of limiters: RMS, TruePower™ and Peak limiter with look ahead, to protect drivers from excessive power and potentially breaking displacement.

2x fully processed outputs with:

  • 8 biquad crossovers (up to 48 dB/octave)
  • 16 full parametric filters per channel (Peaking, High/Low Shelving, High/Low Pass Eq, Band pass, Band stop, All pass)
  • Custom FIR filter (385 taps @ 48 kHz or 96 kHz for the pre-output eq and for each output eq)
  • 100ms delay available for alignment/auxiliary purposes

Control and monitoring features
The KDSP board is fully supported by Powersoft ArmoníaPlus software allowing full access to unique features:

  • Active DampingControl™, for dramatically improved cone control resulting in better sound and higher output
  • TruePower™ Limiter to avoid burning voice coils while getting maximum performances
  • LiveImpedance™ Measurement for load impedance monitoring during live performances, using 8 analog audio inputs for output current and voltage acquisition.
