Quattrocanali è stato concepito per essere utilizzato con carichi a partire da 2 Ω e fino a linee da 70/100V, con la possibilità di utilizzare i diversi tipi di carico su ogni canale indipendentemente. Questa piattaforma di amplificazione può essere implementata in applicazioni mission-critical come sistemi di allarme, grazie all'alimentatore che garantisce l'operabilità anche se connesso ad una UPS. I servizi MyPowersoft sono disponibili per questo prodotto Alimentazione Leggendario alimentatore di Powersoft universale con tecnologia switch mode fino a 400 VAC con Power Factor Correction Bassa corrente di spunto che riduce l'assorbimento all'accensione, eliminando la necessità di costosi sequencers di potenza Cavo di alimentazione staccabile con presa IEC C19/22. 2 (16A for EU, 20 A per USA) Protezioni Protezioni complete integrate nel design dei circuiti: Protezione AC: spegnimento dell'alimentazione quando la tensione di rete è fuori scala Clip limiter: impedisce che segnali con valore di picco troppo elevato raggiungano gli altoparlanti, pur mantenendo piena potenza di picco Protezione DC: impedisce che segnali infrasonici raggiungano l'output VHF protezioni: pro
| Model | Available Versions | Total Power |
|---|---|---|
| Quattrocanali 1204 | DSP / DSP+ / DSP+D | 1200 W |
| Quattrocanali 2404 | DSP / DSP+ / DSP+D | 2400 W |
| Quattrocanali 4804 | DSP / DSP+ / DSP+D | 4800 W |
| Quattrocanali 8804 | DSP / DSP+ / DSP+D | 9600 W |
DSP: with integrated DSP DSP+: with DSP and AES67 support DSP+D: with DSP and Dante support For more information and details on Power Sharing capabilities, please refer to the data sheets.
Funzionalità
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behavior
- Fixed frequency switch-mode output stage for high grade sound accuracy

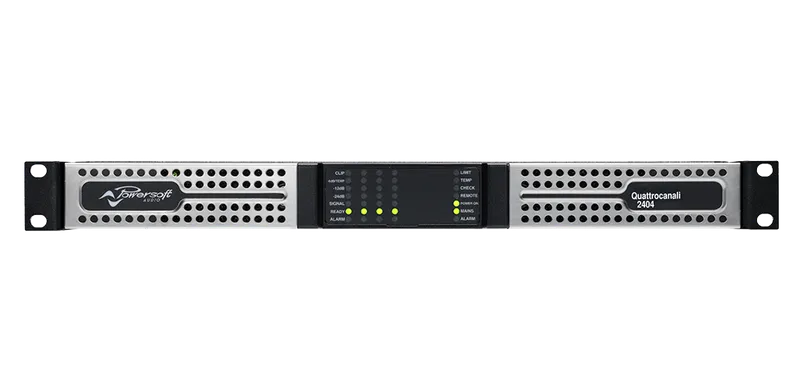

- Compact size - all models only 1 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 7 kg (15.4 lbs)
- Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input (main and aux) per channel
- Built-in defeatable clip limiters for each channel
- Digital gain-attenuator control
- Defeatable gate selection for each channel
- User selectable gain/sensitivity
- User selectable maximum output power for each channel
- User selectable maximum mains current draw
- Lockable set-up by user selectable access key code
- Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
- NC/NO contacts per channel for alarm notifications
- Remote ON/OFF switch
- Remote VCA control per channel
- Attenuation (from 0 dB to 26 dB)
- Max output voltage
- Output and gain reduction metering
- Diagnostics (temperature, fans,...)
- Attenuation (from 0dB to 26dB)
- High-pass filters (35Hz, 70Hz)
- Lo-Z/Hi-Z/70V/100V output selection
- Adjustable gain (from 26dB to 35 dB)
Specifiche
| Output power per Channel | |||
|---|---|---|---|
| Output power per Channel | 800 W @ 2 Ω | 600 W @ 4 Ω | 600 W @ 8 Ω |
| Bridge mode | 1600 W @ 4 Ω | 1200 W @ 8 Ω | |
| Max output voltage / current | |||
| Max unclipped voltage @8 Ω | 100 Vpeak | ||
| Current | 45 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption/current draw | |||
| Idle | 115 V: 31 W - 0.45 A | 230 V: 31.8 W - 0.26 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 406 W -2.1 A | 230 V: 438 W - 2.39 A | |
| THERMAL | |||
| Operating temperature range | 0° - 45° C - 32° - 113° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 107 BTU/h | 230 V: 109 BTU/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 361 BTU/h | 230 V: 361 BTU/h | |
