K20

2-Channel High Performance Power Amplifier

OverviewModelsFeaturesSpecificationsDownloadsRelatedRelated case studies

Overview

The K20 impresses with up to 18,000 W in single rack space, making it probably the most powerful amplifier at its size. Ideal for subwoofers requiring relatively high continuous power and ample headroom, the K20 is the unique result of smart design, attention to sound quality, and extremely high efficiency with reliability, portability, and adaptability in mind. In use worldwide by leading touring and event companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package. MyPowersoft services are available for this product

Models

K Series - all models

Model	Total power	Per channel	Channels	Form factor	AoIP
K20 DSP	-	9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω	2	1 RU	-
K20	-	9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω	2	1 RU	-

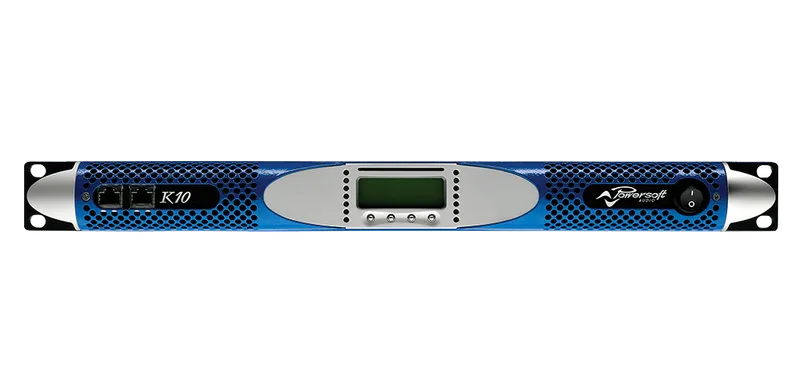

K10 DSP	-	6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω	2	1 RU	-
K10	-	6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω	2	1 RU	-
K6 DSP	-	3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω	2	1 RU	-
K6	-	3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω	2	1 RU	-
K3 DSP	-	2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω	2	1 RU	-
K3	-	2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω	2	1 RU	-
K2 DSP	-	2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω	2	1 RU	-
K2	-	2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω	2	1 RU	-

Features

Advanced switch-mode worldwide operating power supply technology for high performance and compact size
Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating a range
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Ac protection: shut down power supply when AC mains voltage is outside the operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
Fixed frequency switchmode output stage for high-grade sound accuracy
Compact size - all models only 1 RU for reduced rack cost and space
Lightweight - for easier racking and shipping: 12 kg (26.5 lbs) according to the configuration
Combo XLR/6.3mm jack Neutrik input connectors with link capability
LCD matrix interactive display
Comprehensive-user friendly front panel display menu
Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User-selectable gain/sensitivity
User-selectable maximum output power for each channel
User-selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built-in remote control via the RS-485 interface provides full diagnostic, operational setting, and system monitoring
Hardware monitor available for fast local diagnostic
Load impedance measurement/display for each channel
Output power measurements/display for each channel
Mains voltage and current measurements/display
Downloadable log file of functional fault events with time-related trace
Smart Card settings, parameters, and upgrades functionality

Specifications

Output power per channel
Output power per channel	9000 W @ 2 Ω	5200 W @ 4 Ω	2700 W @ 8 Ω
Bridge mode	18000 W @ 4 Ω	10400 W @ 8 Ω
Max output voltage / current
Single channel mode	225 Vpeak / 125 Apeak
Bridge mode	450 Vpeak
AC main power
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement	100-240 V ±10%, 50-60 Hz
Operating voltage	90 V - 264 V
Power consumption / current draw
Idle	115 V: 91 W - 1.3 A	230 V: 88 W - 1.17 A
1/8 of max output power @ 4 Ω	115 V: 1650 W - 15.8 A	230 V: 1625 W - 7.9 A
1/4 of max output power @ 4 Ω	115 V: 3250 W - 29.3 A	230 V: 3250 W - 14.7 A
THERMAL
Operating temperature range	0° - 45° C - 32° - 113° F
Thermal dissipation*
Idle	115 V: 682 BTU/h - 171.9 kcal/h	230 V: 682 BTU/h - 171.9 kcal/h
1/8 of max output power @ 4 Ω	115 V: 1590 BTU/h - 400.7 kcal/h	230 V: 1590 BTU/h - 400.7 kcal/h
1/4 of max output power @ 4 Ω	115 V: 2498 BTU/h - 629.5 kcal/h	230 V: 2498 BTU/h - 629.5 kcal/h
