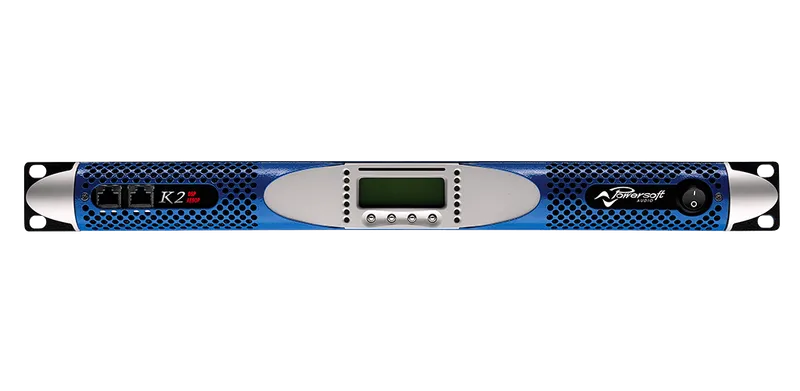

With up to 4,800 W the K2 is the "smallest" amplifier in K Series. Built on the same technologies and features as present in the bigger models, it makes a full-fledged member of the amplifier line that changed the face and direction of the professional audio amplification market. Only 8kg/17.6lbs light, the K2 is the ideal companion for where space, weight, and uncompromised sound quality matter. Per Step-up card a K2 can be upgraded to become a K3 - more power without replacing the entire amplifier. In use worldwide by leading touring and event sound companies, K Series is preferred among the top ranking system designers, sound engineers, and system techs on the road for making their lives easier, giving them reliable premier-grade power and headroom in the smallest possible package size. Fully digitally controlled and with a serial PC communication port as standard, the K2 is also available with KDSP board and KAESOP Ethernet/AES3 interface: the K2 DSP+AESOP amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities, remotely controllable via Powersoft’s ArmoníaPlus (Interface available for MediaMatrix, Crestron, AMX, Q-SYS control, and monitoring systems).
K Series - all models
| Model | Total power | Per channel | Channels | Form factor | AoIP |
|---|---|---|---|---|---|
| K20 DSP | - | 9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω | 2 | 1 RU | - |
| K20 | - | 9000 W @ 2 Ω 5200 W @ 4 Ω 2700 W @ 8 Ω | 2 | 1 RU | - |
| K10 DSP | - | 6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω | 2 | 1 RU | - |
| K10 | - | 6000 W @ 2 Ω 4000 W @ 4 Ω 2000 W @ 8 Ω | 2 | 1 RU | - |
| K6 DSP | - | 3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | 1 RU | - |
| K6 | - | 3600 W @ 2 Ω 2500 W @ 4 Ω 1300 W @ 8 Ω | 2 | 1 RU | - |
| K3 DSP | - | 2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω | 2 | 1 RU | - |
| K3 | - | 2800 W @ 2 Ω 2600 W @ 4 Ω 1400 W @ 8 Ω | 2 | 1 RU | - |
| K2 DSP | - | 2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω | 2 | 1 RU | - |
| K2 | - | 2400 W @ 2 Ω 1950 W @ 4 Ω 1000 W @ 8 Ω | 2 | 1 RU | - |
Features
- Advanced switch-mode worldwide operating power supply technology for high performance and compact size
- Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continous variable speed fan, front to back airflow
- Temperature forecast with LCD traced historical behaviour
- Fixed frequency switchmode output stage for high grade sound accuracy
- Compact size - all models only 1 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 12 kg (26.5 lbs) according to configuration
- Combo XLR/6.3mm jack Neutrik input connectors with link capability
- AES3 digital input *
- LCD matrix interactive display
- Comprehensive-user friendly front panel display menu
- Built-in defeatable clip limiters for each channel
- Digital gain-attenuator control
- Defeatable gate selection for each channel
- User selectable gain/sensitivity
- User selectable maximum output power for each channel
- User selectable maximum mains current draw
- Lockable set-up by user selectable access key code
- Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
- Hardware monitor available for fast local diagnostic
- Load impedance measurement / display for each channel
- Output power measurements / display for each channel
- Mains voltage and current measurements / display
- Downloadable log file of functional fault events with time related trace
- Smart Card settings, parameters and upgrades functionality
- Analog Devices SHARC® DSP architecture
- AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
- Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
- Delay up to 1 s for time alignment
- Active DampingControl™ for cable compensation
- Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
- Control and monitoring through ArmoníaPlus
- Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems
Specifications
| Output power per channel | |||
|---|---|---|---|
| Output power per channel | 2400 W @ 2 Ω | 1950 W @ 4 Ω | 1000 W @ 8 Ω |
| Bridge mode | 4800 W @ 4 Ω | 3900 W @ 8 Ω | |
| Max output voltage / current | |||
| Single channel mode | 140 Vpeak / 102 Apeak | ||
| Bridge mode | 280 Vpeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption / current draw | |||
| Idle | 115 V: 69 W - 1.2 A | 230 V: 88 W - 1.35 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 609 W - 6.3 A A | 230 V: 609 W - 3.1 A | |
| 1/4 of max output power @ 4 Ω | 115 V: 1219 W - 11.4 A | 230 V: 1219 W - 5.7 A | |
| THERMAL | |||
| Operating temperature range | 0° - 45° C - 32° - 113° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 382 BTU/h - 96.3 kcal/h | 230 V: 382 BTU/h - 96.3 kcal/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 722 BTU/h - 181.9 kcal/h | 230 V: 722 BTU/h - 181.9 kcal/h | |
| 1/4 of max output power @ 4 Ω | 115 V: 1062 BTU/h - 267.6 kcal/h | 230 V: 1062 BTU/h - 267.6 kcal/h | |
