Powersoft – Dynamic Music Distribution

High-quality music distribution in multi-zone / source applications

Powersoft Dynamic Music Distributionpffers System Integrators the ability to scale inputs and zones conveniently and efficiently with dynamic routing capabilities embedded in its amplifier platforms.

This makes it simpler to share music between different zones independently <br>from the source location, and to carry control signals in an automated fashion, and without the need for a centralized DSP. Multiple UI options allow easy control of the entirety of the system in dynamic music distribution applications

Mezzo Series

Mezzo Series

2/4 Channel Compact Install Amplifier

Many Functions. One single device.

Nowadays, even the simplest music distribution system relies on multiple devices to route sources, and to access its functions. This traditionally called for several single-purpose functionality and features to be added to the audio chain, which can lead to costly, overly complex, and inefficient systems.

Our solution is to integrate all those functionalities and features in one single device that includes a routing matrix, a network switch, and digital sound processing. This allows for lighter, more efficient systems that are easy to deploy and run.

Dynamic Routing Capability

Dynamic Music Distribution - Powersoft


Powersoft - Dynamic Music Distribution



Dynamic Routing


Dynamic Matrix


Dynamic Dante Patching



With Dynamic Routing, any digital or analog source that is connected to an amplifier is automatically recognized as mono, stereo, or multichannel, and shared between the different zones. This is made possible through a dedicated object-based approach which makes audio sources, including analog inputs, available to every amplifier in the network, making setting up complex routing and zoning options a breeze. The onboard DSP will handle all signal processing and source-to-zone routing, while limiters protect the loudspeakers.

Reduced installation time
Reduced cable runs.

Less equipment
No matrices, no control processors.

Simple setup
Less time to learn and configure the system.



This new feature allows users to drive up to 4 independent Zones with a single 4-channel Mezzo amplifier.

The system design workflow in ArmoníaPlus remains unvaried, with the exception that the 2-Zone limitation has been removed. Just remember to update the firmware on your 4-Channel Mezzo.

Powersoft - Dynamic Music Distribution


Stereo sources can be mixed down to mono sources. This allows for more flexibility as users can free up Dante input channels on receiving amplifiers and have more unique stereo sources available for selection.

This feature only applies to systems designed around Mezzo AD models. This mono-mix Dante Sharing ability is limited to sources that are physically patched to Mezzo’s analog inputs and shared over Dante.


Comfortable listening experience in Multizone/source music distribution.

The multizone music distribution system can be deployed in small to medium-sized installations that do not require paging integration, using a combination of UIs and install amplifiers, like Mezzo.

With the acoustic signature playing such a major role in social spaces, stores, cafés, gyms, and restaurants, this system grants the control and acoustic performances required to set the tone.



Low SPL applications tailored to fit



Scalable music distribution made to order

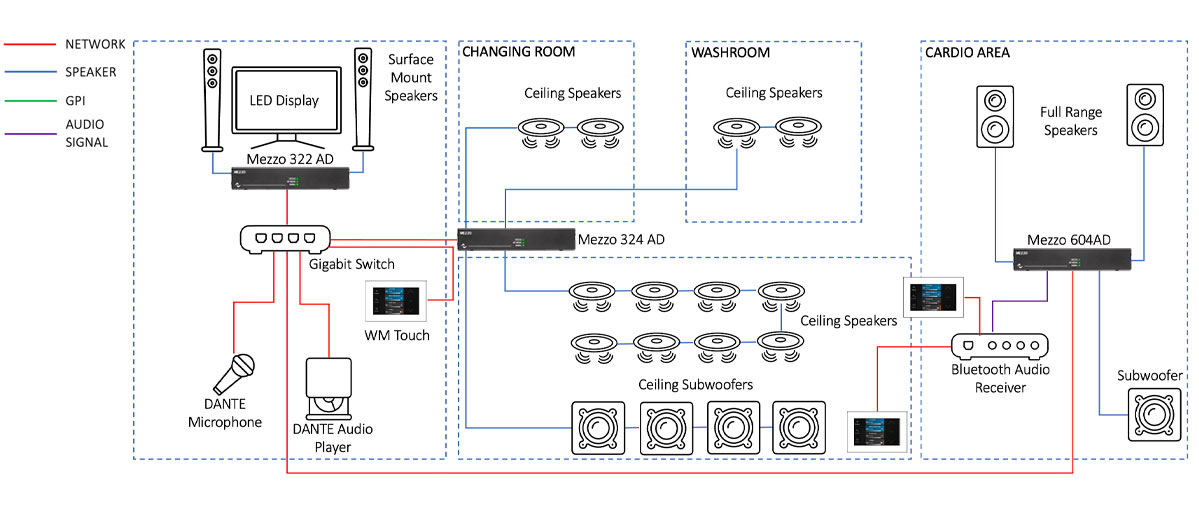

Application Examples



High performing and ultra-efficient

Application Examples

Streamlined User Experience

All critical system functions, including signal routing, volume control and mute, zoning, and scene selection can be controlled through dedicated UIs, including the WM Passive controllers, Web Views running on a tablet, the SYS Control App running on any mobile device, and the brand-new WM Touch.

WM Touch - Full control at your fingertips

WM Touch - Full control at your fingertips

As an elegant, effective, and intuitive multi-zone control tool, the brand new Powersoft Wall Mount Touch allows control of the entirety of the dynamic music distribution system from a single panel.

WM Panels

WM Panels

The WMP Level and WMP Select can be shared over the network, meaning that a passive wall controller can be connected to one amplifier via GPI and control the parameters of other devices in the same network.

Intuitive configuration tool

Powersoft - Dynamic Music Distribution

The install-dedicated skin of ArmoníaPlus offers straightforward setup and control of the system through an object-driven signal flow, which makes it simple to create zones, configure routing options, and manage scenes. It is also possible to create custom user interfaces or to select pre-defined ones to be used in conjunction with the SYS Control App, which enables control from any smartphone or compatible device. Furthermore, ArmoníaPlus will provide full access to the powerful DSP onboard of our amplifiers.

SYS Control App

A dedicated app that allows users to control their system Views and to quickly load their A+ project designs to the amplifiers and external controls. The app configuration is also done in ArmoníaPlus.
