M14D

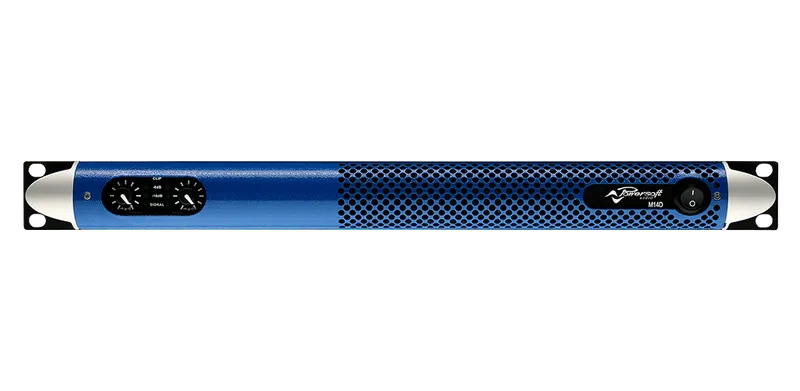

2-Channel Power Amplifier for Touring and Installation

OverviewModelsFeaturesSpecificationsDownloadsRelatedRelated case studies

Overview

Where not high output power or channel count but a dependable amplifier is required, the M14D is the right tool. Built on the same technologies as Powersoft′s prominent touring amplifiers, the M14D comes to play in smaller quality sound systems. In use worldwide by leading touring and event sound companies, Powersoft amplifiers are preferred among the top ranking system designers, sound engineers, and contractors for providing reliable premier-grade power and headroom in the smallest possible package size. Maximum efficiency warrants minimum current draw, heat dissipation, and power consumption, resulting in "green" products, saving the user a substantial amount of money over time.

Models

M Series - all models

Model	Total power	Per channel	Channels	Form factor	AoIP
M50Q HDSP+ETH	-	700 W @ 4 Ω 360 W @ 8 Ω	4	-	-
M50Q	-	1250 W @ 4 Ω 750 W @ 8 Ω	4	1 RU	-
M28Q HDSP+ETH	-	700 W @ 4 Ω 360 W @ 8 Ω	4	-	-
M28Q	-	700 W @ 4 Ω 360 W @ 8 Ω	4	1 RU	-
M30D HDSP+ETH	-	1500 W @ 4 Ω 900 W @ 8 Ω	2	-	-
M30D	-	1500 W @ 4 Ω 900 W @ 8 Ω	2	1 RU	-
M20D HDSP+ETH	-	1200 W @ 4 Ω 600 W @ 8 Ω	2	-	-
M20D	-	1200 W @ 4 Ω 600 W @ 8 Ω	2	1 RU	-
M14D HDSP+ETH	-	700 W @ 4 Ω 360 W @ 8 Ω	2	-	-
M14D	-	700 W @ 4 Ω 360 W @ 8 Ω	2	1 RU	-

Features

Advanced switch-mode power supply technology for high performance and compact size
Fixed frequency switch mode output
Patented output filter with ripple cancellation network
Ac protection: shut down power supply when AC mains voltage is outside the operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 75 °C (167 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Analog Devices ADAU 1701 DSP architecture
24 bit @ 48 kHz, 120 dB S/N AD/DA converters
Separate input/output EQ’s with numerous filters of various types up to 48 dB/oct
Peak, RMS, and frequency-dependent limiters
Delay for time alignment
Direct drive constant voltage, 70V Hi-Z distributed lines*
Compact size - all models only 1 RU for reduced rack cost and space
Lightweight - all models only 7.4 kg (16.3 pounds) for easier racking and shipping
Neutrik XLR balanced inputs with loop thru XLR and Speakon outputs connectors
Recessed stepped attenuators
Modular construction
Full four years warranty
Control and monitoring through ArmoníaPlus
Interface available for MediaMatrix, Crestron, AMX, Q-SYS control, and monitoring systems

Specifications

Output power per channel
Output power per channel	700 W @ 4 Ω	360 W @ 8 Ω
Bridge mode	1400 W @ 8 Ω
Max output voltage / current
Single channel mode	85 Vpeak / 65 Apeak
Bridge mode	170 Vpeak
AC main power
Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement	100-240 V ±10%, 50-60 Hz
Operating voltage / current	90 V - 264 V
Power consumption
Idle	115 V: 39 W - 0.6 A	230 V: 39 W - 0.3 A
1/8 of max output power @ 4 Ω	115 V: 283 W - 3.8 A	230 V: 283 W - 1.9 A
1/4 of max output power @ 4 Ω	115 V: 538 W - 7 A	230 V: 538 W - 3.5 A
THERMAL
Operating temperature range	0° - 45° C - 32° - 113° F
Thermal dissipation*
Idle	115 V: 133 BTU/h - 33.5 kcal/h	230 V: 133 BTU/h - 33.5 kcal/h
1/8 of max output power @ 4 Ω	115 V: 368 BTU/h - 92.7 kcal/h	230 V: 368 BTU/h - 92.7 kcal/h
1/4 of max output power @ 4 Ω	115 V: 641 BTU/h - 161.5 kcal/h	230 V: 641 BTU/h - 161.5 kcal/h
