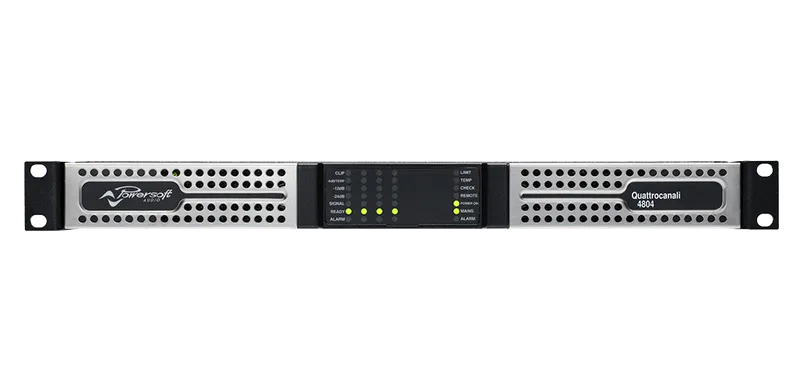

QUATTROCANALI 4804

4800W/4-channel Flexible Amplifier

Powersoft 4ch
Safety Reliabilit
SRM
PFC
ArmoniaPlus
GreenPower
MyPowersoft

Overview

Quattrocanali 4804 offers the traditionally amazing sound quality and reliability of all Powersoft products.

The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.

Quattrocanali is designed to operate with lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two.

This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.

MyPowersoft services are available for this product

Features

Power supply

  • Powersoft legendary universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • DC protection: protects against infrasonic signal at the outputs
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow
  • Temperature forecast with LCD traced historical behavior

General

  • Fixed frequency switch-mode output stage for high grade sound accuracy
  • Compact size – all models only 1 RU for reduced rack cost and space
  • Light weight – for easier racking and shipping: 7 kg (15.4 lbs)

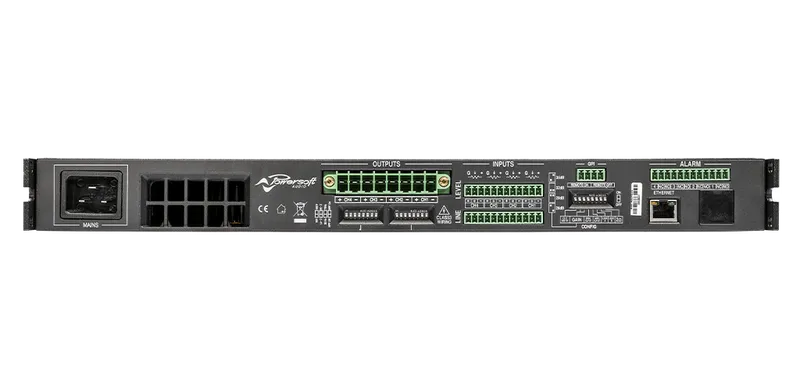

  • Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
  • Remotely switchable double input (main and aux) per channel

Settings

  • Built-in defeatable clip limiters for each channel
  • Digital gain-attenuator control
  • Defeatable gate selection for each channel
  • User selectable gain/sensitivity

Alarms and GPI/O

  • NC/NO contacts per channel for alarm notifications
  • Remote ON/OFF switch
  • Remote VCA control per channel

Remote Control & Monitoring

Via Software:

  • Attenuation (from 0 dB to 26 dB)
  • Max output voltage
  • Output and gain reduction metering
  • Diagnostics (temperature, fans, …)

Via Hardware:

  • Attenuation (from 0dB to 26dB)
  • High-pass filters (35Hz, 70Hz)
  • Lo-Z/Hi-Z/70V/100V output selection
  • Adjustable gain (from 26dB to 35 dB)

Specifications

General
Output power per Channel
Output power per Channel1500 W @ 2 Ω1200 W @ 4 Ω1200 W @ 8 Ω
Bridge mode3000 W @ 4 Ω2400 W @ 8 Ω
Max output voltage / current
Max unclipped voltage @8 Ω139 Vpeak
Current45 Apeak
AC main power
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage90 V – 264 V
Power consumption/current draw
Idle115 V: 31 W – 0.47 A230 V: 32 W – 0.28 A
1/8 of max output power @ 4 Ω115 V: 823 W – 7.7 A230 V: 840 W – 4.3 A
THERMAL
Operating temperature range0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle115 V: 106 BTU/h230 V: 107 BTU/h
1/8 of max output power @ 4 Ω115 V: 759 BTU/h230 V: 840 BTU/h
