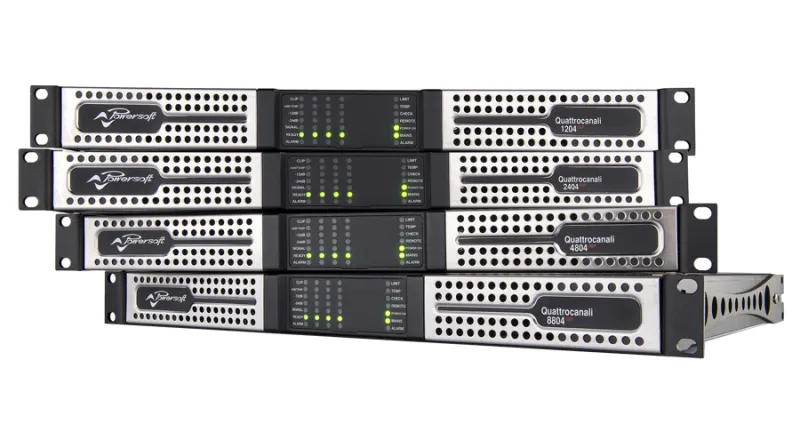

Quattrocanali 2404 DSP+ offers the traditionally amazing sound quality and reliability of all Powersoft products.
The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two.
DSP+ versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done in a remote, decentralized location.
This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.
MyPowersoft services are available for this product
Fully protected circuit design with:
Via Software:
Via Hardware:
General | |||
Output power per Channel | |||
Output power per Channel | 800 W @ 2 Ω | 600 W @ 4 Ω | 600 W @ 8 Ω |
Bridge mode | 1600 W @ 4 Ω | 1200 W @ 8 Ω | |
Max output voltage / current | |||
Max unclipped voltage @8 | 100 Vpeak | ||
Current | 45 Apeak | ||
AC main power | |||
Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
Operating voltage | 90 V – 264 V | ||
Power consumption/current draw | |||
Idle | 115 V: 31.1 W – 0.45 A | 230 V: 31.5 W – 0.25 A | |
1/8 of max output power @ 4 Ω | 115 V: 405 W – 2.1 A | 230 V: 405 W – 2.5 A | |
THERMAL | |||
Operating temperature range | 0° – 45° C – 32° – 113° F | ||
Thermal dissipation* | |||
Idle | 115 V: 106 BTU/h | 230 V: 107 BTU/h | |
1/8 of max output power @ 4 Ω | 115 V: 360 BTU/h | 230 V: 360 BTU/h |
