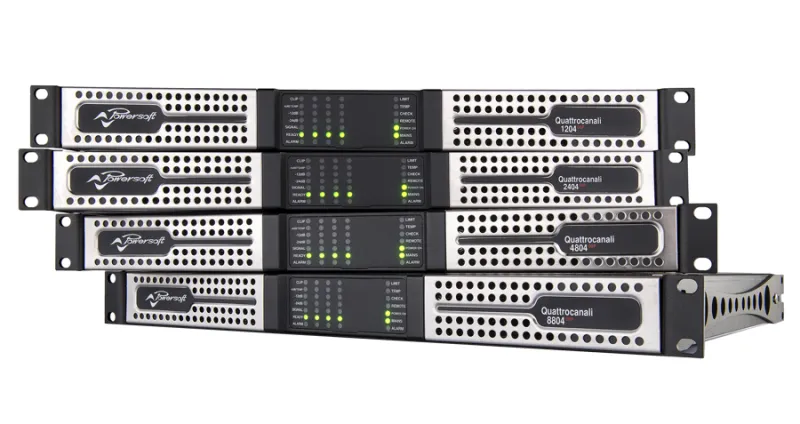

QUATTROCANALI 4804 DSP+D

4800W/4-channel Flexible Amplifier with DSP and Dante™

Powersoft_ICONS_features-black_4ch-LoHi Powersoft_ICONS_features-black_Routing-channel EN54@2x Powersoft_ICONS_features-black_AudioNetwork Powersoft_ICONS_features-black_DSP-onboard Powersoft_ICONS_features-black_Safety-Reliability Powersoft_ICONS_features-black_SRM Powersoft_ICONS_features-black_PFC Powersoft_ICONS_features-black_Armoniaplus GreenPower@2x MyPowersoft

Overview

Quattrocanali 4804 offers the traditionally amazing sound quality and reliability of all Powersoft products.

The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.

Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two.

DSP+D versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done by a remote, decentralized location.

This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.

MyPowersoft services are available for this product

Features

Power supply

  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Fully protected circuit design with:
  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • DC protection: protects against infrasonic signal at the outputs
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow
  • Temperature forecast with LCD traced historical behavior

General

  • Fixed frequency switch-mode output stage for high grade sound accuracy
  • Compact size - all models only 1 RU for reduced rack cost and space
  • Light weight - for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
  • Remotely switchable double input (main and aux) per channel

Settings

  • Built-in defeatable clip limiters for each channel
  • Digital gain-attenuator control
  • Defeatable gate selection for each channel
  • User selectable gain/sensitivity
  • User selectable maximum output power for each channel
  • User selectable maximum mains current draw
  • Lockable set-up by user selectable access key code
  • Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring

Digital Signal Processing

  • TI C6000 DSP platform
  • AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
  • Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
  • Delay up to 100 ms for time alignment
  • Active DampingControl™ for cable compensation
  • Peak, RMS voltage, RMS current, TruePower™ limiters

Remote Control and Monitoring

Via Software:
  • Control and diagnostics monitoring via ArmoniaPlus
  • Dedicated WebApp
Via Hardware:
  • Attenuation (from 0dB to 26dB)
  • High-pass filters (35Hz, 70Hz)
  • Lo-Z/Hi-Z/70V/100V output selection
  • Adjustable gain (from 26dB to 35 dB)

Specifications

General
Output power per Channel
Output power per Channel 1500 W @ 2 Ω 1200 W @ 4 Ω 1200 W @ 8 Ω
Bridge mode 3000 W @ 4 Ω 2400 W @ 8 Ω
Max output voltage / current
Max unclipped voltage @8 Ω 139 Vpeak
Current 45 Apeak
AC main power
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption/current draw
Idle 115 V: 31.3 W – 0.47 A 230 V: 31.6 W – 0.27 A
1/8 of max output power @ 4 Ω 115 V: 823 W – 7.7 A 230 V: 840 W – 4.3 A
THERMAL
Operating temperature range 0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle 115 V: 107 BTU/h 230 V: 108 BTU/h
1/8 of max output power @ 4 Ω 115 V: 760 BTU/h 230 V: 818 BTU/h

Downloads

Certifications
CB Certificate NL-65574 CSA Certificate 80049422 CPR Certificate 0560-CPR-182190008 CCC Certificate 2017010802984035 REACH Declaration of Conformity Powersoft RoHsChina Declaration of Conformity Powersoft RoHsCE Declaration of Conformity Powersoft Declaration of Conformity DoC Powersoft – QUATTROCANALI Series UK Declaration of Conformity DoC Powersoft – Quattrocanali Series EPA Declaration of Conformity Powersoft
A&E specifications
Quattrocanali 4804 DSP+D A&E
Brochures
Line Brochure | INSTALL Voice Alarm & EN54 Brochure
BUILDING INFORMATION MODELING - BIM
BIM - Quattrocanali Series
Data sheets
Quattrocanali DSP+D Series Datasheet
Mechanical drawings
Quattrocanali Series Mechanical drawings
Technical notes
Application Note - HealthPlus Application Note - Amplifiers Backup strategy and Startup times Application Note - Network switch configuration for Dante & AES67 Application Note - Limiters : basic concept and operations Application Note - Power Sharing Application Note - Line Integrity Monitoring and Pilot Tones Application Note - Web App for Powersoft Amplifiers Application Note - VCA Operation and remote Off GPI Application Note - AES67 Configuration Setup Application Note - Dante Setup Application Note - Interactive Tuning Plugin | Armonía Plugin Application Note - Damping Control
User guides
Duecanali + Quattrocanali User Guide Multilingual
Software
ArmoníaPlus 2.1
