12000W/8-channel Flexible Amplifier with DSP and Dante™
Overview
TheOttocanali 12K4 DSP+Dis a flexible and reliable 8-channel power amplifier with up to a total of 12,000 W at 4Ω, ideal for multi-zone applications in medium to large-scale installs: Ottocanali 12K4 DSP+D supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 12K4 DSP+D features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.
The Ottocanali 12K4 DSP+D implementsuniversal switch mode power supplies with PFC and patented SRM(Smart Rails Management) technology maximizing reliability & efficiency and reducing power consumption.
NewOttocanali 12K4 DSP+Dheralds new and innovative level of signal processing. Providing flexible routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2 s in input processing and 100 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters and Active DampingControl™.
Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum: the Ottocanali 12K4 DSP+D shines with outstandingly low power consumption and heat dissipation. This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems – not to mention the benefits to the environment for a greener planet.
MyPowersoft services are available for this product.
Features
Power supply
- Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
ProtectionsFully protected circuit design with:
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
General
- Fixed frequency switch mode output stage for high grade sound accuracy
- All models 2 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 14 kg / 30.8 lbs

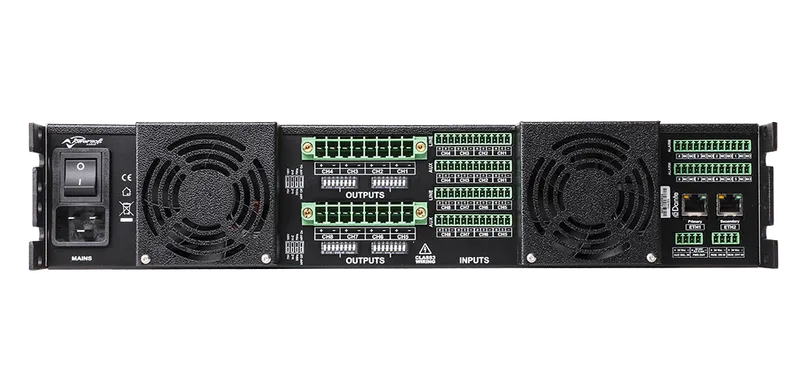

- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input
Loudspeaker system configuration
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode, with low impedance, per channel pair
Processing
- TI C6000 DSP platform architecture
- AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
- Input/output independent equalizers per channel providing Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
- Crossovers: linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Input delay up to 2s and output delay up to 100ms for time alignment per channel
- Active DampingControl™ for cable compensation
- Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
Alarms and GPIO
- Configurable alarm contact NC/NO per channel
- Remote AUX input/MAIN input switch
- Remote ON/OFF switch
- PWS OUT connector providing up to 24VDC
Remote management
- Control and monitoring through ArmoníaPlus
Specifications
Documents
A&E specificationsOttocanali 12K4 DSP+D A&EBrochuresVoice Alarm & EN54 BrochureBUILDING INFORMATION MODELING - BIMBIM - Ottocanali SeriesData sheetsOttocanali + DSP Series DatasheetMechanical drawingsOttocanali 12K4, 8K4, 4K4 Mechanical DrawingsTechnical notesApplication Note - HealthPlusApplication Note - Amplifiers Backup strategy and Startup timesApplication Note - Limiters: basic concept and operationsApplication Note - Power SharingApplication Note - Line Integrity Monitoring and Pilot TonesApplication Note - Web App for Powersoft AmplifiersApplication Note - Dante SetupApplication Note - Interactive Tuning Plugin | Armonía PluginApplication Note - Damping ControlApplication Note - Powersoft Amplifiers and AoIP (Dante-AES67)Thermal & CurrentOttocanali Current Draw & Thermal DissipationUser guidesOttocanali User GuideProgramaArmoníaPlusCertificationsCSA Certificate 70003097CB Certificate NL-29078 M1CCC Certificate 2018010802048447CPR Certificate 0560-CPR-182190006RoHsCE Declaration of Conformity PowersoftRoHsChina Declaration of Conformity PowersoftREACH DoC PowersoftUK Declaration of Conformity DoC Powersoft – OttocanaliEPA Declaration of Conformity Powersoft
Related case studies
Engineered around uptime
Powersoft’s DSP implements a complete audio management system that provides a unique level of control and can be used to set the tone of any space.
Our current line of amplifier offers Dante™ either as standard or as an option on any model, for audio over IP networking.
Powersoft has always been very focused on energy saving and the use of the Power Factor Correction (PFC) has been a trademark for improving performance and containing mains current draw and consumption.
In any amplifier output stage, the efficiency is a function of the difference in the output voltage delivered to the load and the rails voltage delivered from the power supply.
Power Sharing enables part of the power to be shared across all output channels so that it can be used where it is needed the most.
With modern systems growing larger in size, the resistance that is added by lengthy cable runs starts to become an issue.
Ottocanali Series - all models
| Model | Total power | Per channel | Channels | Form factor | AoIP |
|---|---|---|---|---|---|
| OTTOCANALI 12K4 DSP+D | 12000 W | 1000 W @ 2 Ω 1500 W @ 4 Ω 850 W @ 8 Ω | 8 | - | Dante / AES67 |
| OTTOCANALI 12K4 | 12000 W | 1000 W @ 2 Ω 1500 W @ 4 Ω 850 W @ 8 Ω | 8 | - | - |
| OTTOCANALI 8K4 DSP+D | 8000 W | 850 W @ 2 Ω 1000 W @ 4 Ω 600 W @ 8 Ω | 8 | - | Dante / AES67 |
| OTTOCANALI 8K4 | 8000 W | 850 W @ 2 Ω 1000 W @ 4 Ω 600 W @ 8 Ω | 8 | - | - |
| OTTOCANALI 4K4 DSP+D | 4000 W | 450 W @ 2 Ω 500 W @ 4 Ω 250 W @ 8 Ω | 8 | - | Dante / AES67 |
| OTTOCANALI 4K4 | 4000 W | 450 W @ 2 Ω 500 W @ 4 Ω 250 W @ 8 Ω | 8 | - | - |
Features
- Universal switch mode power supply up to 400V AC tolerant with Power Factor Correction
- Patented output filter with ripple cancellation network
- Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
- Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
- Ac protection: shut down power supply when AC mains voltage is outside operating range
- Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
- DC protection: protects against infrasonic signal at the outputs
- VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
- Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
- Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
- Thermal protection: output stages operating temperature up to 80 °C (176 °F)
- Temperature controlled continuous variable speed fan, front to back airflow
- Fixed frequency switch mode output stage for high grade sound accuracy
- All models 2 RU for reduced rack cost and space
- Light weight - for easier racking and shipping: 14 kg / 30.8 lbs
- Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
- Remotely switchable double input
- Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
- Switchable 35Hz / 70Hz high pass filter per channel
- Mixed configuration with Lo-Z/Hi-Z systems possible
- Bridged mode, with low impedance, per channel pair
- TI C6000 DSP platform architecture
- AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
- Input/output independent equalizers per channel providing Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
- Crossovers: linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Input delay up to 2s and output delay up to 100ms for time alignment per channel
- Active DampingControl™ for cable compensation
- Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
- Configurable alarm contact NC/NO per channel
- Remote AUX input/MAIN input switch
- Remote ON/OFF switch
- PWS OUT connector providing up to 24VDC
- Control and monitoring through ArmoníaPlus
Specifications
| Output power per channel | |||
|---|---|---|---|
| Output power per channel | 1000 W @ 2 Ω | 1500 W @ 4 Ω | 850 W @ 8 Ω |
| Bridge mode | 2000 W @ 4 Ω | 3000 W @ 8 Ω | |
| Max output voltage / current | |||
| Max unclipped voltage @8 Ω | 116.6 Vpeak | ||
| Bridge mode | 45 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V - 264 V | ||
| Power consumption/current draw | |||
| Idle | 115 V: 74 W - 0.85 A | 230 V: 77 W - 0.75 A | |
| 1/8 of max output power @ 4 Ω | 115 V: 2075 W - 18.5 A | 230 V: 2115 W - 9.7 A | |
| THERMAL | |||
| Operating temperature range | 0° - 35° C - 32° - 95° F | ||
| Thermal dissipation* | |||
| Idle | 115 V: 160 BTU/h - 41 kcal/h | 230 V: 170 BTU/h - 43 kcal/h | |
| 1/8 of max output power @ 4 Ω | 115 V: 253 BTU/h - 64 kcal/h/h | 230 V: 263 BTU/h - 66 kcal/h | |
| 1/4 of max output power @ 4 Ω | 115 V: 4283 BTU/h - 1080 kcal/h | 230 V: 3874 BTU/h - 977 kcal/h | |
