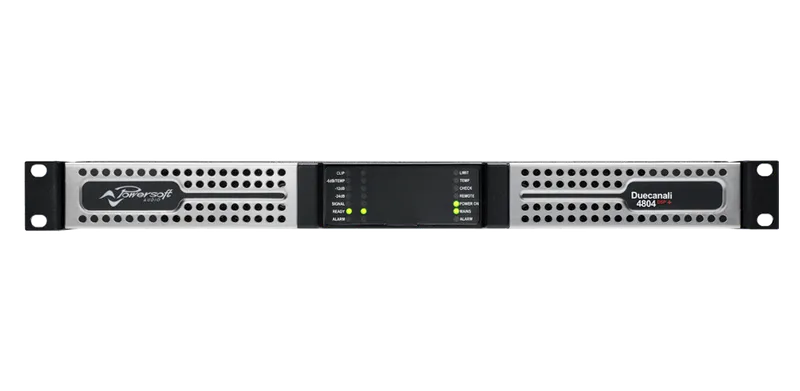

Discontinued Products – DUECANALI 4804

Power supply

• Powersoft legendary universal switch-mode power supply up to 400VAC tolerant with Power Factor Correction
• Patented output filter with ripple cancellation network
• Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
• Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Fully protected circuit design with:

• Ac protection: shut down power supply when AC mains voltage is outside the operating range
• Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
• DC protection: protects against infrasonic signal at the outputs
• VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
• Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
• Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals, by reducing maximum output
• Thermal protection: output stages operating temperature up to 80 °C (176 °F)
• Temperature controlled continuous variable speed fan, front to back airflow
• Temperature forecast with LCD traced historical behavior

General

• Fixed frequency switchmode output stage for high-grade sound accuracy
• Compact size – all models only 1 RU for reduced rack cost and space
• Lightweight – for easier racking and shipping: 7 kg (15.4 lbs)

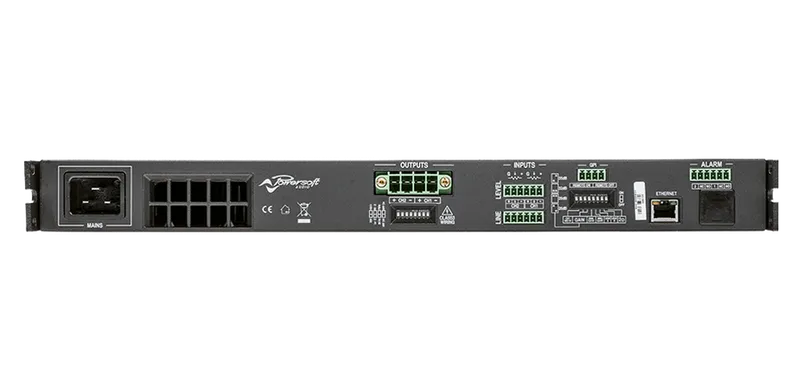

• Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
• Remotely switchable double input (main and aux) per channel

Loudspeaker system configuration

• Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
• Switchable 35Hz / 70Hz high pass filter per channel
• Mixed configuration with Lo-Z/Hi-Z systems possible
• Bridged mode low impedance per channel pair

Alarms and GPI/O

• NC/NO contacts per channel for alarm notifications
• Remote ON/OFF switch
• Remote VCA control per channel

Remote Control & Monitoring

Via Software:

• Attenuation (from 0 dB to 26 dB)
• Max output voltage
• Output and gain reduction metering
• Diagnostics (temperature, fans, …)

Via Hardware:

• Attenuation (from 0 dB to 26 dB)
• High Pass Filter (35 Hz, 70 Hz)
• LoZ/HiZ/70V/100V output selection
• Gain (from 26 dB to 35 dB)
