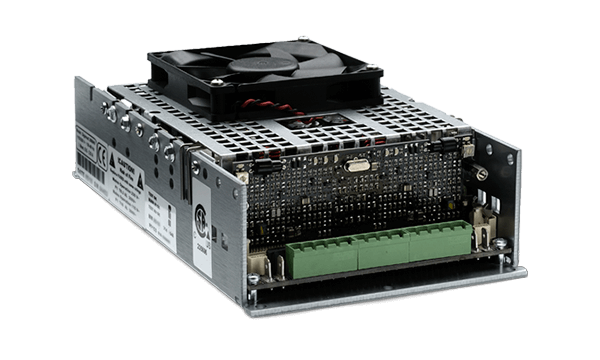

DigiMod 2000 HV

As for all Powersoft modules, even the 2100W delivered by DigiMod 2000HV can be shaped and controlled using one of the DSP boards available to design the sound of the loudspeaker with a large set of processing algorithms. Automatic mains voltage switch for worldwide operation Thermal protection (power limiting - thermal shutdown) Short-circuit/overload output protection Clip limiter Permanent signal limiter High-frequency protection Auxiliary output voltage (±12V regulated, 200mA max) Bypass line outputs for external active/passive filters Mute command Temperature-controlled internal Fan and output Optional DSP board Remote Control & Networking with optional DSP board Fully integrate with ArmoníaPlus, for complete monitoring and control of the whole system. General Output power in single channel mode Single channel mode 1050 W @ 8 Ω 570 W @ 16 Ω Bridge mode 2100 W @ 16 Ω Max output voltage / current Single channel mode 129 Vpeak / 35 Apeak Bridge mode 258 Vpeak AC main power Power supply Universal, regulated switch mode Nominal power requirement Operating voltage Power consuption Idle 1/8 of max output power @ 4 Ω 1/4 of max output power @ 4 Ω THERMAL Operating temperature range
