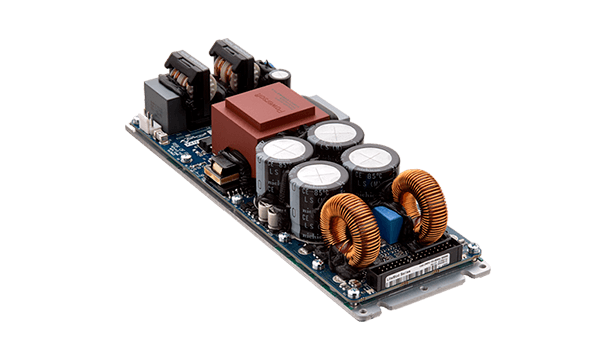

LiteModはコンパクトで強力なスイッチングモードアンプモジュールであり、2チャンネルモードで最大800W + 400Wまたは2x 600W、ブリッジモードで最大1200Wを供給します。
LiteModは、アクティブモニター、2ウェイラウドスピーカー、小型/中型サブウーファーに適合するように設計された柔軟なプラットフォームです。
PFCを搭載した電源設計により、消費電力が低く(スタンバイ時で0.55W未満)、あらゆる動作条件において信頼性と一貫性が向上します。
出力段の高効率により、出力時と同じレベルの電力とクリーンな出力信号が提供され、全体的なパフォーマンスが向上します。
LiteModはPowersoftの多数のDSPソリューションと互換性があり、そのパフォーマンスは、PowersoftのArmoníaPlusを通して簡単に調整・制御でき、あらゆる種類の処理ツールを簡単に利用できます。
MyPowersoftの各種サービスをご利用いただけます。
| General | |||
| Output power | |||
| Single-Ended Mode (SE) | 600 W @ 4 Ω | 400 W @ 8 Ω | |
| Bridge Mode (BTL) | 1200 W @ 8 Ω | ||
| Max output voltage / current | |||
| Max output voltage | 43 Vpeak / 31 Apeak | ||
| Max output current | 85 Vpeak / 31 Apeak | ||
| AC main power | |||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
| Rated Power Supply Voltage | 100-240 V ±10%, 50-60 Hz | ||
| Operating voltage | 90 V – 264 V | ||
| Power consumption | |||
| Standby | 0.5 W | ||
| Idle | 13.5 W | ||
| 1/8 of max output power @ 8 Ω | 220 W | ||
| THERMAL | |||
| Operating temperature range | 0° – 45° C – 32° – 113° F | ||
