Maximum efficiency warrants minimum current draw, heat dissipation, and power consumption, resulting in “green” products, saving the user a substantial amount of money over time.

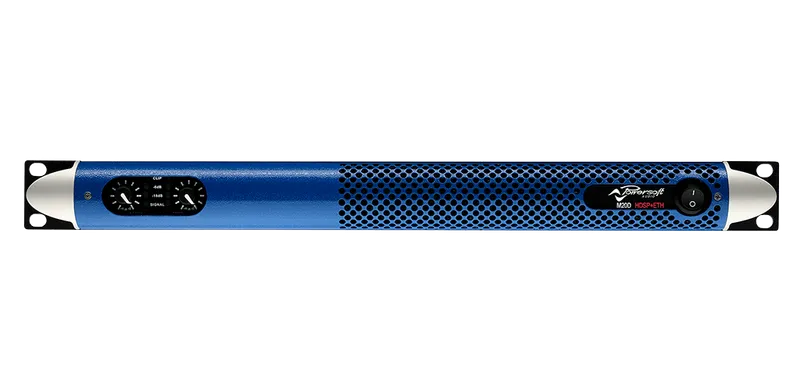

The M20D HDSP+ETH version provides on-board DSP and Ethernet interfaces.
The high-performance DSP is hidden inside and safe against accidental or intentional tampering; monitoring and amplifier settings can be done via ArmoníaPlus (Interface available for MediaMatrix, Crestron, AMX, Q-SYS control and monitoring systems). Locally, the M20D HDSP+ETH lets the user access up to four presets per pushbutton on the rear panel.
Fully protected circuit design with:
* = HDSP+ETH version with HPF and output voltage limiter preset / external HPF and output voltage limiter required with no-HDSP+ETH version.
General | |||
Output power per channel | |||
Output power per channel | 1200 W @ 4 Ω | 600 W @ 8 Ω | |
Bridge mode | 2400 W @ 8 Ω | ||
Max output voltage / current | |||
Single channel mode | 116 Vpeak / 65 Apeak | ||
Bridge mode | 232 Vpeak | ||
AC main power | |||
Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | ||
Nominal power requirement | 100-240 V ±10%, 50-60 Hz | ||
Operating voltage | 90 V – 264 V | ||
Power consumption /current draw | |||
Idle | 115 V: 35 W – 0.6 A | 230 V: 35 W – 0.3 A | |
1/8 of max output power @ 4 Ω | 115 V: 371 W – 5 A | 230 V: 371 W – 2.54 A | |
1/4 of max output power @ 4 Ω | 115 V: 701 W – 9 A | 230 V: 701 W – 4.5 A | |
THERMAL | |||
Operating temperature range | 0° – 45° C – 32° – 113° F | ||
Thermal dissipation* | |||
Idle | 115 V: 126 BTU/h – 31.8 kcal/h | 230 V: 126 BTU/h – 31.8 kcal/h | |
1/8 of max output power @ 4 Ω | 115 V: 529 BTU/h – 133.3 kcal/h | 230 V: 529 BTU/h – 133.3 kcal/h | |
1/4 of max output power @ 4 Ω | 115 V: 935 BTU/h – 235.6 kcal/h | 230 V: 935 BTU/h – 235.6 kcal/h |
