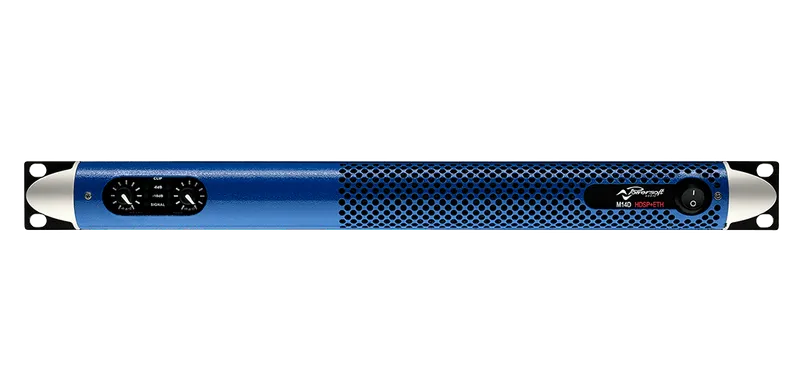

End of Life Products – M14D HDSP+ETH

2-Channel Power Amplifier for Touring and Installation

Powersoft 2ch
DSP OnBoard
ArmoniaPlus
GreenPower
MyPowersoft

Overview

Maximum efficiency warrants minimum current draw, heat dissipation, and power consumption, resulting in “green” products, saving the user a substantial amount of money over time.

The M14D HDSP+ETH version provides on-board DSP and Ethernet interfaces.

The high-performance DSP is hidden inside and safe against accidental or intentional tampering; monitoring and amplifier settings can be done via ArmoníaPlus (Interface available for MediaMatrix, Crestron, AMX, Q-SYS control, and monitoring systems).

Locally, the M14D HDSP+ETH lets the user access up to four presets per pushbutton on the rear panel.

Power supply

  • Advanced switch-mode power supply technology for high performance and compact size
  • Fixed frequency switch mode output
  • Patented output filter with ripple cancellation network

Protections

Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside the operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • DC protection: protects against infrasonic signal at the outputs
  • VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term RMS (non-audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 75 °C (167 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow

Digital Signal Processing

  • Analog Devices ADAU 1701 DSP architecture
  • 24 bit @ 48 kHz, 120 dB S/N AD/DA converters
  • Separate input/output EQ’s with numerous filters of various types up to 48 dB/oct
  • Peak, RMS, and frequency-dependent limiters
  • Delay for time alignment

General

  • Direct drive constant voltage, 70V Hi-Z distributed lines*
  • Compact size – all models only 1 RU for reduced rack cost and space
  • Lightweight – all models only 7.4 kg (16.3 pounds) for easier racking and shipping
  • Neutrik XLR balanced inputs with loop thru XLR and Speakon outputs connectors
  • Recessed stepped attenuators
  • Modular construction
  • Full four years warranty

Remote management

  • Control and monitoring through ArmoníaPlus
  • Interface available for MediaMatrix, Crestron, AMX, Q-SYS control, and monitoring systems

* = HDSP+ETH version with HPF and output voltage limiter preset/external HPF and output voltage limiter required with no-HDSP+ETH version.

General
Output power per channel
 Output power per channel700 W @ 4 Ω360 W @ 8 Ω
Bridge mode1400 W @ 8 Ω
Max output voltage / current
Single channel mode85 Vpeak / 65 Apeak
Bridge mode170 Vpeak
AC main power
Power supplyUniversal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage / current90 V – 264 V
Power consumption
Idle115 V: 39 W – 0.6 A230 V: 39 W – 0.3 A
1/8 of max output power @ 4 Ω115 V: 283 W – 3.8 A230 V: 283 W – 1.9 A
1/4 of max output power @ 4 Ω115 V: 538 W – 7 A230 V: 538 W – 3.5 A
THERMAL
Operating temperature range0° – 45° C – 32° – 113° F
Thermal dissipation*
Idle115 V: 133 BTU/h – 33.5 kcal/h230 V: 133 BTU/h – 33.5 kcal/h
1/8 of max output power @ 4 Ω115 V: 368 BTU/h – 92.7 kcal/h230 V: 368 BTU/h – 92.7 kcal/h
1/4 of max output power @ 4 Ω115 V: 641 BTU/h – 161.5 kcal/h230 V: 641 BTU/h – 161.5 kcal/h
