OTTOCANALI 8K4 DSP+D

8000W/8-channel Flexible Amplifier with DSP and Dante™

Powersoft 8ch
2 rack unit space
SRM
PFC
Safety-Reliability
EN54
Audio Network
Routing Channel
DSP On Board
ArmoniaPlus
GreenPower
MyPowersoft

Overview

The Ottocanali 8K4 DSP+D is a flexible and reliable 8-channel power amplifier with up to a total of 8,000 W at 4Ω, ideal for multi-zone applications in medium to large-scale installs: Ottocanali 8K4 DSP+D supports any combination of lo-Z loudspeakers, mono-bridgeable channel pairs and 70V/100V Hi-Z distributed lines with no need for output step-up transformers. The Ottocanali 8K4 DSP+D features switchable main/aux signal inputs and offers a wide range of system control, alarms, GPI/O and monitoring functions as well as sound shaping options.

The Ottocanali 8K4 DSP+D implements universal switch mode power supplies with PFC and patented SRM (Smart Rails Management) technology maximizing reliability & efficiency and reducing power consumption.

New Ottocanali 8K4 DSP+D heralds new and innovative level of signal processing. Providing flexible routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2 s in input processing and 100 ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters and Active DampingControl™.

Powersoft’s legendary efficiency saves valuable energy, keeping both operational cost and ‘carbon footprint’ at a minimum: the Ottocanali 8K4 DSP+D shines with outstandingly low power consumption and heat dissipation. This dramatically reduces costs from the AC mains supply and air conditioning/cooling systems – not to mention the benefits to the environment for a greener planet.

MyPowersoft services are available for this product.

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections

Fully protected circuit design with:

  • Ac protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • DC protection: protects against infrasonic signal at the outputs
  • VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow

General

  • Fixed frequency switch mode output stage for high grade sound accuracy
  • All models 2 RU for reduced rack cost and space
  • Light weight – for easier racking and shipping: 14 kg / 30.8 lbs

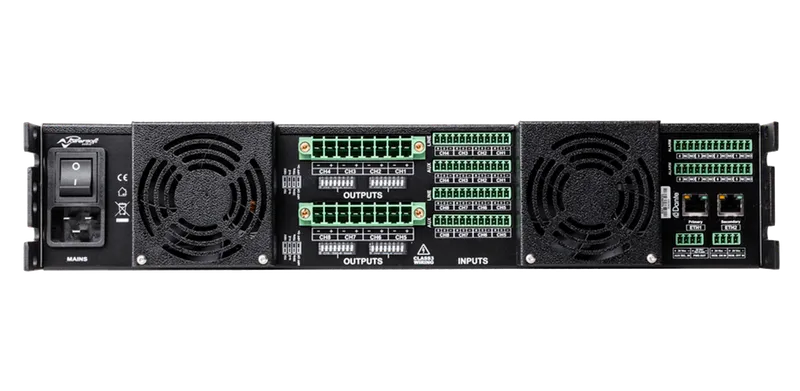

  • Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
  • Remotely switchable double input

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode, with low impedance, per channel pair

Digital Signal Processing

  • TI C6000 DSP platform architecture
  • AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel
  • Input/output independent equalizers per channel providing Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
  • Crossovers: linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
  • Input delay up to 2s and output delay up to 100ms for time alignment per channel
  • Active DampingControl™ for cable compensation
  • Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter

Alarms and GPIO

  • NC/NO contacts per channel for alarm notifications
  • Remote ON/OFF switch
  • Remote AUX/MAIN inputs switch
  • PWS OUT connector providing 24VDC

Remote management

  • Control and monitoring through ArmoníaPlus
General
Output power per Channel
Output power per Channel850 W @ 2 Ω1000 W @ 4 Ω600 W @ 8 Ω
Bridge mode1700 W @ 4 Ω2000 W @ 8 Ω
Max output voltage / current
Single channel mode90 Vpeak / 23 Apeak
AC main power
Power supplyUniversal, regulated switch mode witd PFC (Power Factor Correction)
Nominal power requirement100-240 V ±10%, 50-60 Hz
Operating voltage90 V – 264 V
Power consumption/current draw
Idle115 V: 74 W – 0.85 A230 V: 77 W – 0.75 A
1/8 of max output power @ 4 Ω115 V: 1425 W – 12.6 A230 V: 1425 W – 6.6 A
THERMAL
Operating temperature range0° – 35° C – 32° – 95° F
Thermal dissipation*
Idle115 V: 253 BTU/h – 64 kcal/h230 V: 263 BTU/h – 66 kcal/h
1/8 of max output power @ 4 Ω115 V: 1480 BTU/h – 373.0 kcal/h230 V: 1504 BTU/h – 379.0 kcal/h
1/4 of max output power @ 4 Ω115 V: 2792 BTU/h – 703.6 kcal/h230 V: 2722 BTU/h – 685.9 kcal/h
